45-Series

Dependable performance in a compact, efficient package.

Models Available

PA4745

4.7m (15'5")

PA5045

5.0m (16'5")

Horsepower Range

45HP
Scroll Down

Overview

45-Series Power Arms deliver a perfect combination of reach, power and performance making them the ideal choice for a wide range of users including farmers, contractors and local authorities.

Features

  • Hy-reach Arm Geometry
  • Parallel Arm Geometry
  • Independent Hydraulic System
  • Cast Iron Pumps and Motors
  • Lift and Float Angle Kits
  • Proportional Electric Controls
  • Mechanical Safety Breakaway
  • 3pt Mounting With Stabiliser
  • Left or Right-Hand Build Options

Range Overview

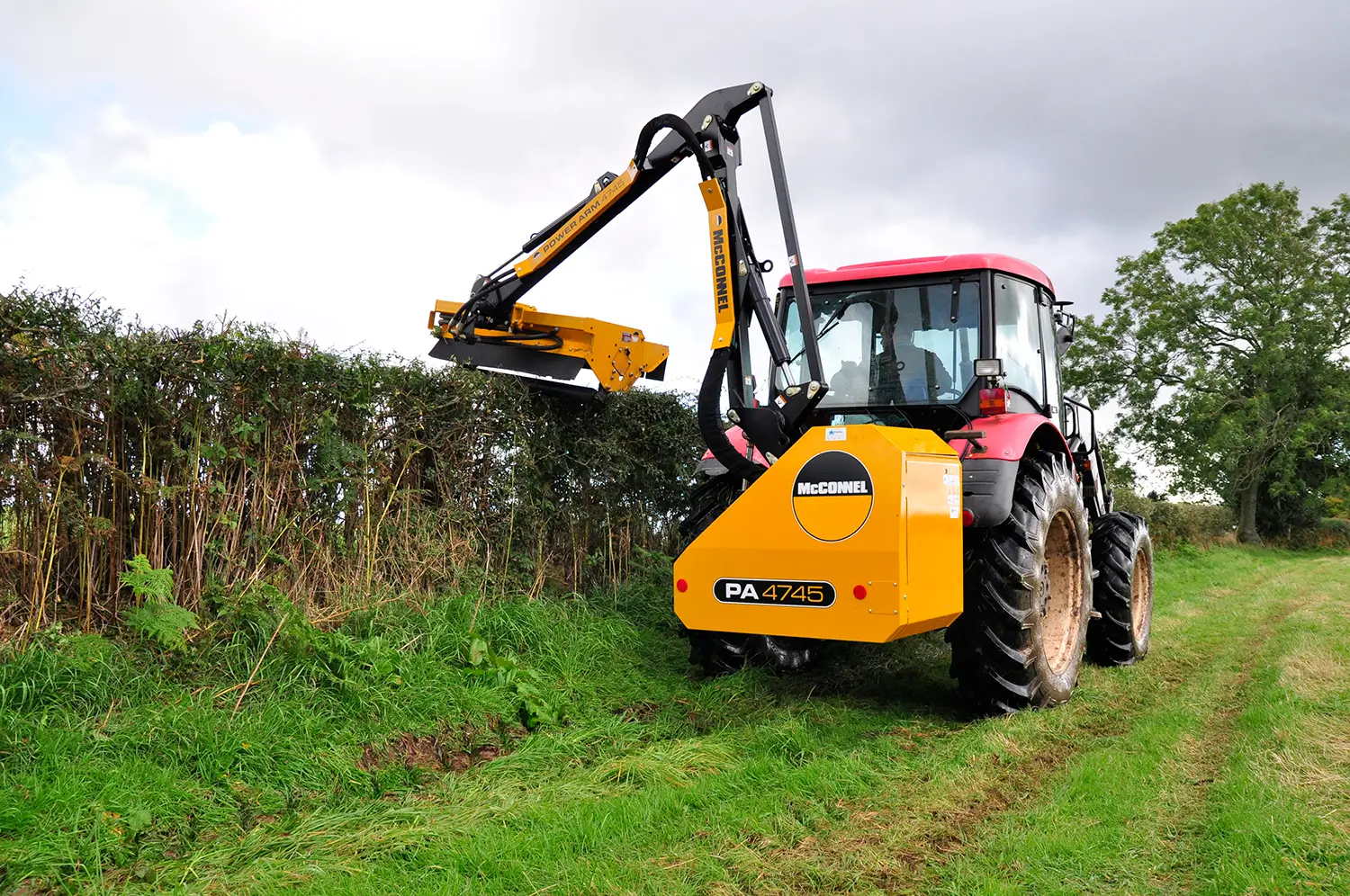

PA4745

Max reach: 4.7m (15’5”)
Hydraulic system: 45hp
Mounting: 3-point linkage
Weight: 641kg
Minimum tractor requirement: 60hp, 2,500kg

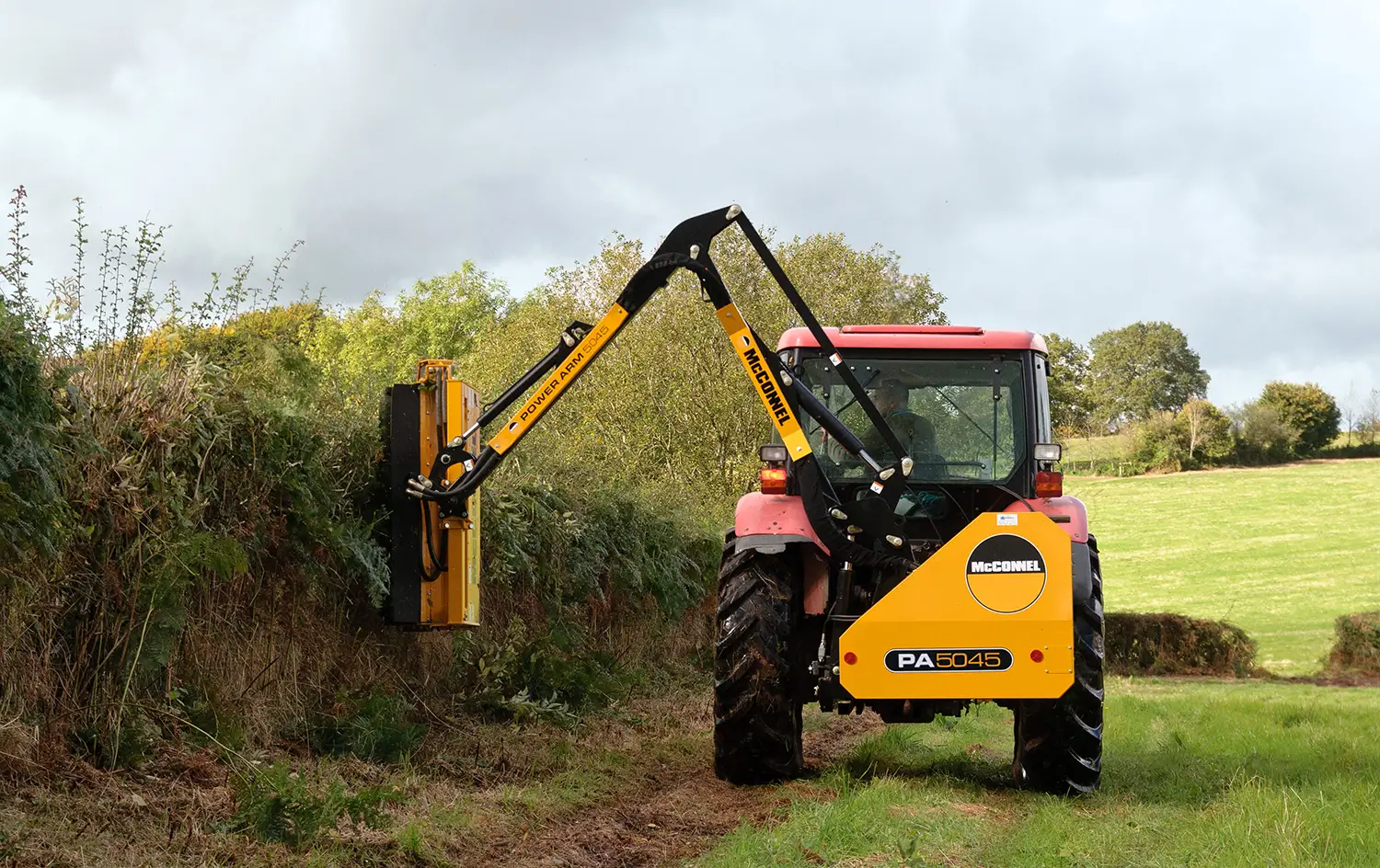

PA5045

Max reach: 5.0m (16’5”)
Hydraulic system: 45hp
Mounting: 3-point linkage
Weight: 665kg
Minimum tractor requirement: 60hp, 2,750kg

Control Options

Cable Control

Simple and progressive control of lift, reach and head angle for precision cutting.

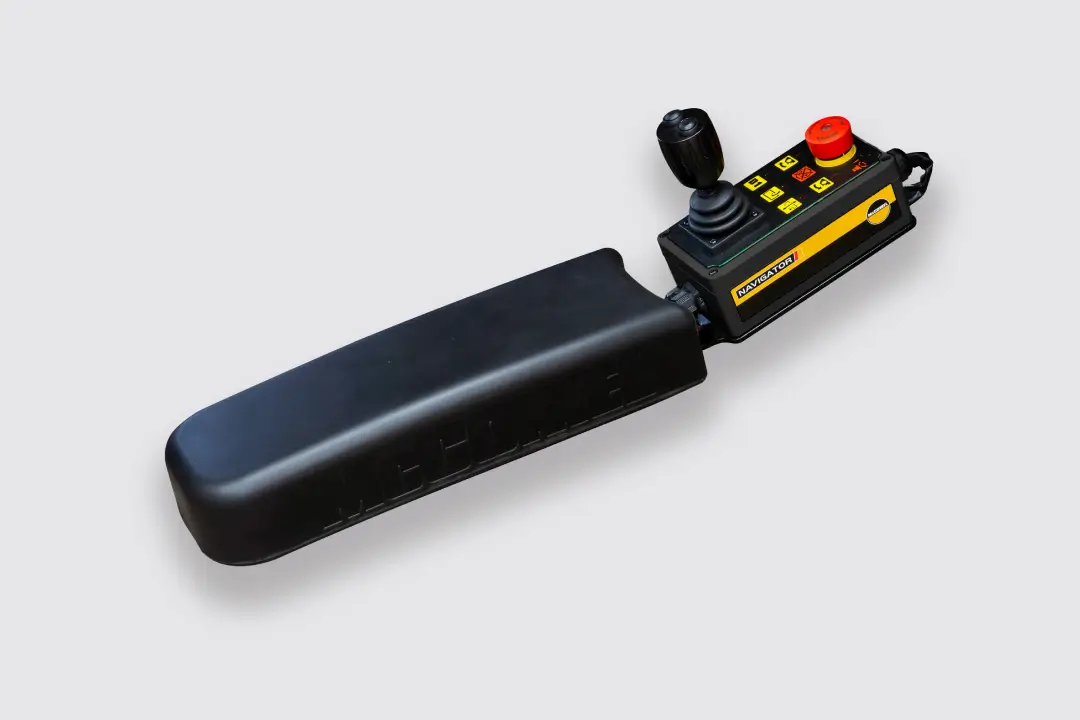

Navigator Control

Compact, promotional control with mini joystick for intuitive fingertip control.

Evolution Control System

Evolution

A seven function (six proportional) controller with a large joystick and integrated rollers for greater functionality at your finger tips.

Floatation Systems

McConnel enables you to work harder, faster and smarter thanks to a range of automatic floatation systems rather than relying on a manual operation. These advanced systems increase verge mowing speeds, reduce operator input and deliver a fast, effective cut without scalping.

LIFT FLOAT
Up to 8km/h

Pressurised accumulator enables 300mm of floatation travel for reduced operator input. Ground pressure settings adjusted manually.

ANGLE FLOAT

Enables the cutting head to automatically follow the contours of the ground in a horizontal plane reducing manual input and operator fatigue.

No floatation system (manual input only)
Automatic floatation
Power Arm Floatation

Armset Features

Parallel Arm Geometry

Maintains the height of the flailhead regardless of reach.

Hy-Reach Geometry

Ensures unrivalled close-in cutting positioning, regardless of height.

High Rocker Pillar

Provides superior over-fence clearance and down-bank reach.

Mounting Options

3-Point linkage Mounting Option

3-Point Linkage

Universal mounting with integrated stabiliser frame for added strength and stability.

Attachments

1.2m Flailhead

1.2m Flailhead

With choice of MultiCut, TuffCut or Omega Rotors. Belt or direct drive options. Full width sliding mount.

1.5m Flailhead

1.5m Flailhead

With choice of MultiCut, TuffCut or Omega Rotors. Belt or direct drive options. Centre mounted.

Sawhead Attachment

Multisaws

Tungsten-tipped saw blades capable of cutting material up to 215mm in diameter. Available in 3 or 4 blade options, with cutting widths of 1.5m, 2.0m, and 2.5m.

Cutterbar Attachment

Cutterbars

Choose between fine-cut or heavy-duty cutterbars with cutting capacities of 40mm and 110mm, respectively, without the risk of thrown debris. Available in cutting widths from 1.5m to 2.7m.

Specification

Scroll sideways for full table

PA4745PA5045
Reach4.7m5.0m
Machine Weight*641kg665kg
Tractor HP Requirement60hp60hp
Tractor Weight Requirement2,500kg2,750kg

*Depending on machine specification excluding attachment and oil
